$1,499.00
STEEP320 is a program intended for numerical modeling of radiation characteristics of blackbody cavities. The program is applicable to design optimization and performance assessment of blackbodies used as standard reference sources in radiating thermometry (pyrometry), thermography, radiometry, photometry, and for optical radiation detector calibrations (e.g., in remote sensing).
STEEP320 is a simplified version of STEEP321. Like their predesessor STEEP3, STEEP320 is based on the proprietary algorithm of the Monte Carlo ray tracing method implemented for an axially symmetric cavities formed by rotation of polygonal line around the axis. The algorithm performs the modeling of various viewing conditions of cavity with arbitrary axially symmetric temperature distribution. The Gray Uniform Specular-Diffuse (GUSD) model of reflection is used for optical properties of each cavity surface.
New, faster ray tracing algorithm and Mersenne Twister Random Number Generator are implemented in STEEP320, what ensures reliability of results at the tracing up to 109 rays.
STEEP320 is a simplified version of STEEP321. Like their predesessor STEEP3, STEEP320 is based on the proprietary algorithm of the Monte Carlo ray tracing method implemented for an axially symmetric cavities formed by rotation of polygonal line around the axis. The algorithm performs the modeling of various viewing conditions of cavity with arbitrary axially symmetric temperature distribution. The Gray Uniform Specular-Diffuse (GUSD) model of reflection is used for optical properties of each cavity surface.
New, faster ray tracing algorithm and Mersenne Twister Random Number Generator are implemented in STEEP320, what ensures reliability of results at the tracing up to 109 rays.
Requirements for hardware and software:
| CPU frequency | 1 GHz or higher |
| Screen Resolution | 1024×768 or greater |
| Hard disk space | 10 MB minimum |
| Operation System | MS Windows XP/Vista/7 |
 |

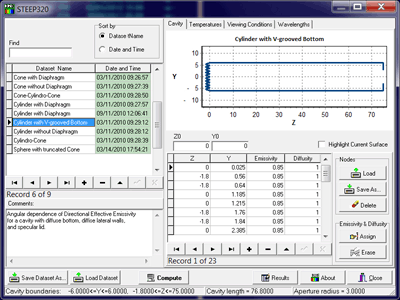

Axially symmetrical cavities can be formed by rotation of polygonal line having up to 201 vertices |
|
Gray Uniform Specular-Diffuse (GUSD) model of reflection |
|
Calculation of effective emissivity and radiance temperatures for up to 201 wavelengths simultaneously |
|
Calculation of total (integrated over the whole spectrum) effective emissivities and radiation temperatures |
|
Five types of viewing conditions each having up to 3 variable parameters |
|
Sequential calculations for up to 201 values of a viewing conditions variable parameter |
|
Possibility for accounting for the contribution of a non-zero background radiation |
|
Built-in expandable databases for: • Geometrical parameters, emissivity, diffusity, and temperature distribution • Results of numerical modeling (effective emissivities and radiance temperatures) |
|
Possibility to save the tabulated data in text files or as MS Excel spreadsheets |
|
Automatically generated reports in ASCII format |
|
Editable, exportable, and printable graphs representing: • Temperature distributions along cavity generatrix • Dependences of effective emissivities and radiance temperature on wavelength • Dependences of effective emissivities and radiance temperature on a variable parameter of viewing conditions |
STEEP320 Key Features
VIRIAL, INC.
Scientific software development and consulting services for radiation thermometry, radiometry, and photometry
STEEP320
To turn Demo Version into full-functioned software you have to purchase license.
