RADICAL (RADIometric CALculator) is the program for calculating radiation characteristics of a gray thermal radiation source with uniform temperature, as well as radiation fluxes falling onto a detector from such a source. It is supposed that radiation heat transfer takes place in vacuum, i.e., without refraction, scattering, and absorption. RADICAL is intended for researcher working in optical radiometry, radiation thermometry, and similar areas; it can be used for educational purposes.
RADICAL works on PCs with MS Windows operating system (2000 to 7). Screen resolution should be not less than 1280 x 800 px.
RADICAL works on PCs with MS Windows operating system (2000 to 7). Screen resolution should be not less than 1280 x 800 px.
Download RADICAL Evaluation version (RADICAL.zip, 1.2 MB)
Download RADICAL Manual (zipped pdf file, 1 MB)
RADICAL doesn't require special efforts for installation. Simply download the Evaluation version, unzip it, save anywhere on the hard drive, and run RADICAL.exe. The Evaluation Version has several restrictions (see details in the appropriate Section of the Manual.) After purchasing the product license, you'll receive an activation key which will turn the purchased product into a fullly functioned unrestricted version. The Software Licence Agreement is included into zip-file with the Evaluation version. To purchase the License go to the Purchase page.
Download RADICAL Manual (zipped pdf file, 1 MB)
RADICAL doesn't require special efforts for installation. Simply download the Evaluation version, unzip it, save anywhere on the hard drive, and run RADICAL.exe. The Evaluation Version has several restrictions (see details in the appropriate Section of the Manual.) After purchasing the product license, you'll receive an activation key which will turn the purchased product into a fullly functioned unrestricted version. The Software Licence Agreement is included into zip-file with the Evaluation version. To purchase the License go to the Purchase page.
RADICAL performs calculations of the following radiation characteristics of gray thermal sources:
 |
spectral radiance and radiance temperatures as a function of spectral variable |
|
position and value of spectral radiance curve maximum |
|
radiant exitance, radiance, and radiation temperature |
|
in-band radiance and in-band radiance temperature for a detector with the rectangular or Gaussian spectral responsivity shape |
|
irradiance distributions in the plane perpendicular to the axis of circular radiation source |
|
radiant flux emerged from the source |
|
radiant flux falling onto the circular detector which lies in the plane perpendicular to the axis of circular radiation source and co-axial with it |
RADICAL allows working with three spectral scales:
|
wavelength in µm |
|
wavenumber in cm-1 |
|
frequency in THz |
RADICAL allows working with three temperature scales:
|
absolute (Kelvin) in K |
|
Celsius in ºC |
|
Fahrenheit in ºF |
RADICAL provides a possibility to take into account the background radiation.

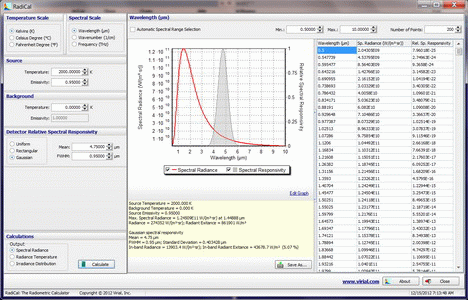

RADICAL presents results of calculations in tables and graphs. Numerical results can be saved in text files, XLS-files (MS Excel spreadsheets), and as XML and HTML tables. Graphs are fully editable and can be saved or exported as bitmap (*.bmp) or Windows metafile (*.wmf).
RADICAL has the mode of automatic selection of spectral range for graphs plotting.
RADICAL presents results of calculations in tables and graphs. Numerical results can be saved in text files, XLS-files (MS Excel spreadsheets), and as XML and HTML tables. Graphs are fully editable and can be saved or exported as bitmap (*.bmp) or Windows metafile (*.wmf).
RADICAL has the mode of automatic selection of spectral range for graphs plotting.
